THERMAL-XR®: how the system works
ENHANCE is a water-based acrylic resin coating containing thermally conductive GMG graphene. Application is completed on-site by GMG-certified applicators. Developed and manufactured in Australia.
HVAC‑R / Thermal management
Restore heat transfer with graphene-enhanced HVAC‑R coating
THERMAL-XR® is a patented, graphene-enhanced coating that reduces HVAC‑R energy consumption, extends coil life with proven corrosion protection. Tested across four continents.
patented
HVAC‑R coilsRTPF and MCHC formatsCommercial product
Faster heat transfer
THERMAL-XR® restores heat transfer across HVAC‑R coil surfaces.
Coil protection
Protects aluminium and copper heat exchange surfaces against corrosion.
Energy savings
Restored thermal performance reduces operating demand, confirmed by independent testing.
Retrofit path
THERMAL-XR® is applied to existing assets on-site with no equipment replacement required.
Commercial coating system
Coating for HVAC‑R heat exchangers
THERMAL-XR® is a graphene-enhanced coating for aluminium and copper air-cooled heat exchangers, corroded or new, where heat transfer, corrosion protection and energy use are connected. Measured across commercial buildings, data centres, hospitals and industrial plant in Australia, Singapore, Thailand, the USA and Romania.
Built for air-cooled heat exchange equipment
- For air conditioning and refrigeration coils, including RTPF and microchannel formats.
- Designed to coat and protect heat exchange surfaces while supporting thermal conductivity.
- Relevant to commercial, industrial and residential cooling applications.

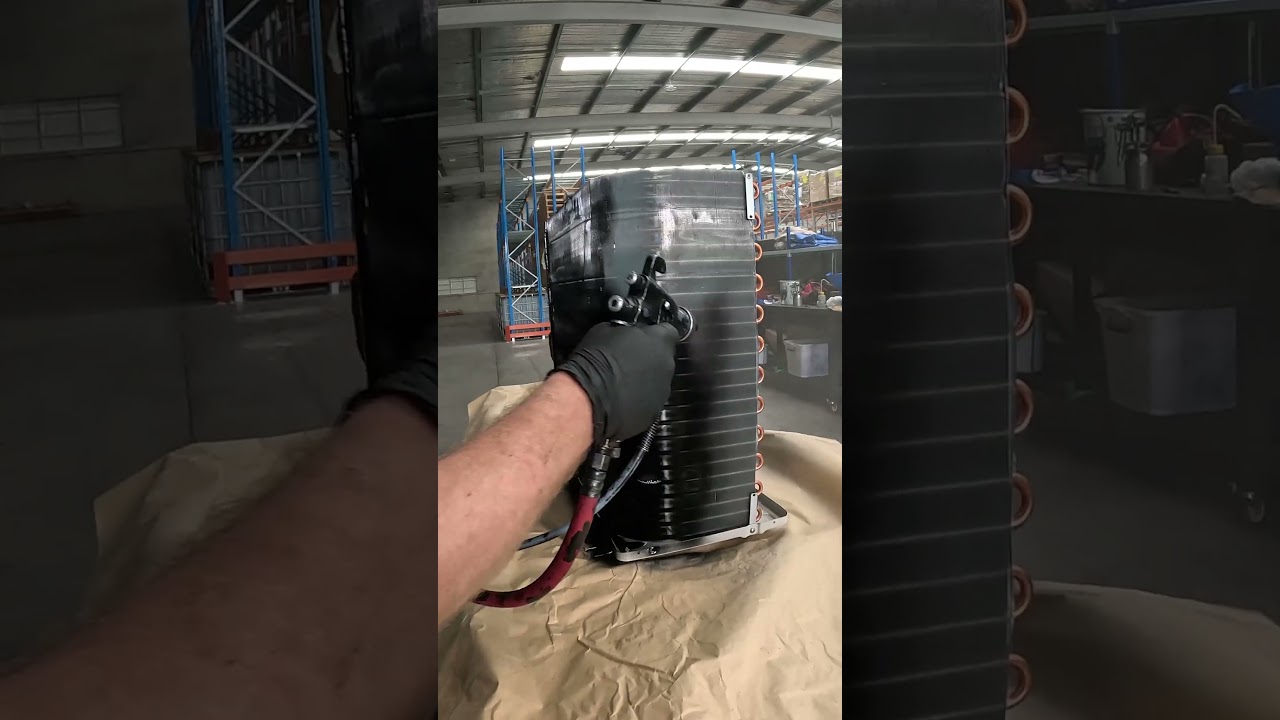

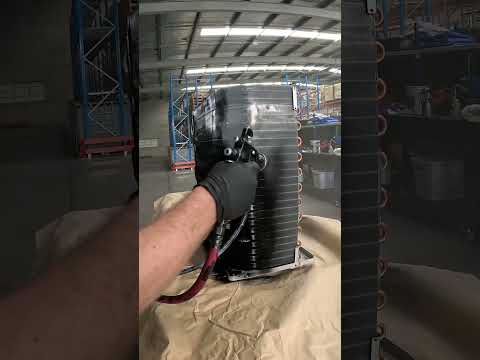

THERMAL-XR® in action
See THERMAL-XR® working
Why it matters
Why facilities teams evaluate THERMAL-XR®
Coil condition affects energy use, asset life and maintenance cost. THERMAL-XR® addresses all three.
Thermal performance
Recover performance at the surface
10-50% energy reduction measured across commercial HVAC, chillers and data centres.
Asset protection
Protect exposed metal coils
30,000+ hours salt spray resistance (ASTM B117), independently tested by Industrial Inspection & Analysis.
Energy logic
Reduce compressor workload
When heat transfer improves, cooling equipment can spend less time fighting thermal losses, supporting lower energy use.
Retrofit
Treat existing HVAC‑R assets
Extends coil service life, deferring capital replacement by years.
Surface area
Use micro surface area in a thin layer
Up to 300 m2 of micro surface area per gram of graphene supports heat dissipation inside the coating.
Application support
From product to qualified installation
On-site installation by GMG-certified applicators.
Where it fits
Built for cooling assets where heat loss becomes business cost
THERMAL-XR® is designed for air-cooled heat exchangers in demanding environments where coil condition drives operating cost.

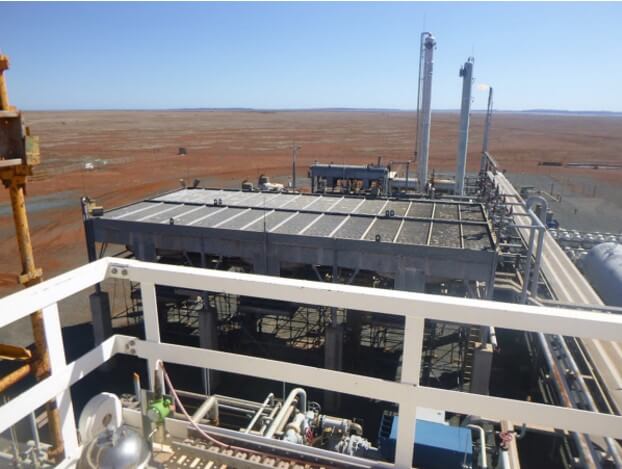

HVAC‑RLNG and gas plantsOil and gas upstreamEnergy and power producersRefineries and petrochemical plantsChemical, heavy and mining industry
Published results across installed cooling assets
| Sector | Application | Measured result |
|---|---|---|
| Data centre | 18 CRAC units, Singapore | 15.4% energy saving |
| Hospital | Daikin Chiller, Singapore | 24.3% energy saving |
| Industrial | TRANE chiller, Romania | 18% energy saving / +19% COP |
| Education | 30-ton AAON rooftop, Texas | 36.7% energy saving |
| Food manufacturing | Daikin chillers, Singapore | 11.6% energy saving |
| Fitness/leisure | 85kW AC unit, Australia | 22% energy saving |
Facilities
Commercial HVAC‑R
For air conditioning, refrigeration and building cooling systems where coil condition, uptime and power consumption affect facility cost.
Industrial cooling
Process and plant environments
For energy, LNG, petrochemical, mining and industrial sites that rely on heat exchangers under demanding operating conditions.
Corrosion pressure
Coastal and harsh locations
For assets exposed to salt air, humidity, chemical load or dirty operating environments.

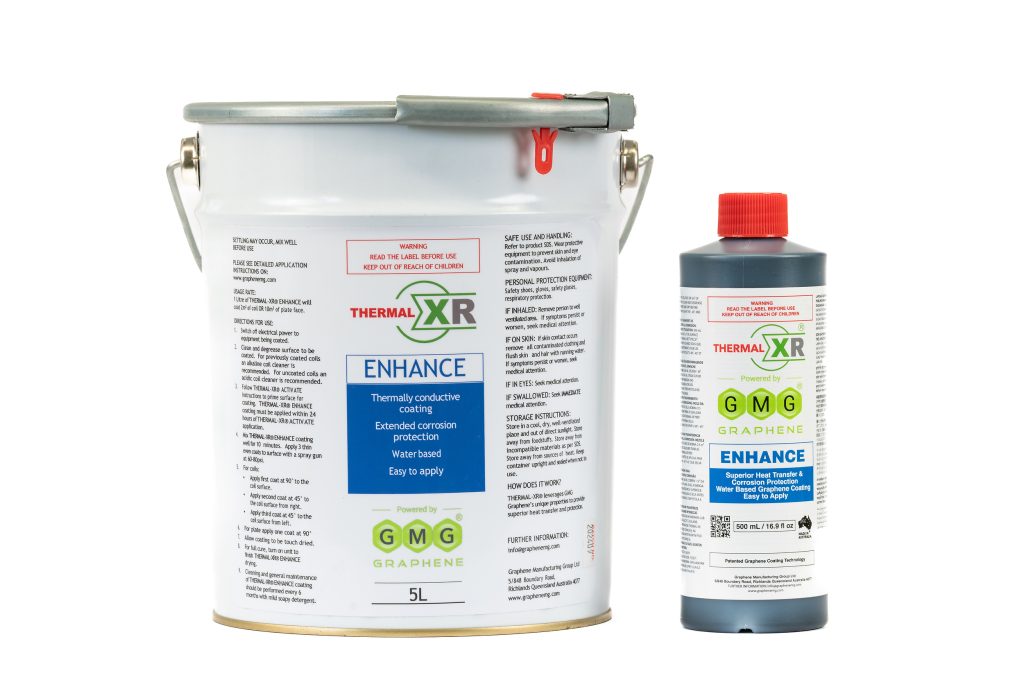

Product system
THERMAL-XR®: application support
THERMAL-XR® is applied on-site by GMG-certified applicators and distributors.
PREPCleaner and preparation materials help create the right foundation before coating.
ENHANCEGraphene-enhanced, thermally conductive coating for relevant heat exchanger surfaces.
Application supportGMG-certified applicators and distributors install the product at your site.
Proof and commercial readiness
Tested, approved and documented
THERMAL-XR® is backed by independent testing, corrosion-resistance data, U.S. EPA approval and full application documentation.
Independent testing
UQ-verified heat transfer and energy saving results
THERMAL-XR® heat transfer and energy saving results are independently verified by the University of Queensland.
Protection
Independently tested corrosion resistance
20,000+ hours ASTM B117 salt spray resistance, tested by Industrial Inspection & Analysis.
Market access
U.S. EPA approval opens a larger commercial channel
THERMAL-XR® carries U.S. EPA approval for sales in the United States.
Documents
Complete product documentation
SDS, PDS and application materials help procurement, facilities and partner teams review the product before installation.
Buyer questions
Common questions from facilities and HVAC‑R buyers
Is THERMAL-XR® for new equipment or existing assets?
THERMAL-XR® is designed for existing air-cooled heat exchangers where surface condition, corrosion and energy use are already visible issues.
Who applies the product?
Installation follows product documentation and local requirements. GMG applicator and distributor network connects operators with the right installation support.
Does THERMAL-XR® guarantee a fixed energy saving?
No. Energy outcomes depend on asset condition, environment, installation quality and operating profile. GMG provides testing, mechanism explanations and product documentation for evaluation.
Where can a buyer go next?
A buyer can review product information, open the THERMAL-XR® store, contact GMG about an application, or connect with an applicator or distributor.
Is THERMAL-XR® just a black coating?
No. THERMAL-XR® is a graphene-enhanced coating that improves thermal conductivity and protects surfaces, not a conventional black paint that absorbs and holds heat.
What warranty does THERMAL-XR® carry?
THERMAL-XR® is backed by a 5-year limited warranty, with a recommended 6-monthly maintenance schedule.
Can THERMAL-XR® be applied to microchannel coils as well as RTPF?
Yes, THERMAL-XR® supports both RTPF and microchannel formats.
How is THERMAL-XR® applied?
THERMAL-XR® can be applied by spray applicator, flow coat or dipping. Typical on-site application takes 1-2 days.
Shop THERMAL-XR®
Compare product information, availability and purchase options at the dedicated THERMAL-XR® store.
Become an applicator or distributor
Commercial partners can apply to join the THERMAL-XR® applicator or distributor network.
THERMAL-XR® safety data sheet
Official safety documentation for procurement, facilities and application teams.
Request a site assessment
Talk to the GMG team about your equipment, environment and application options.
